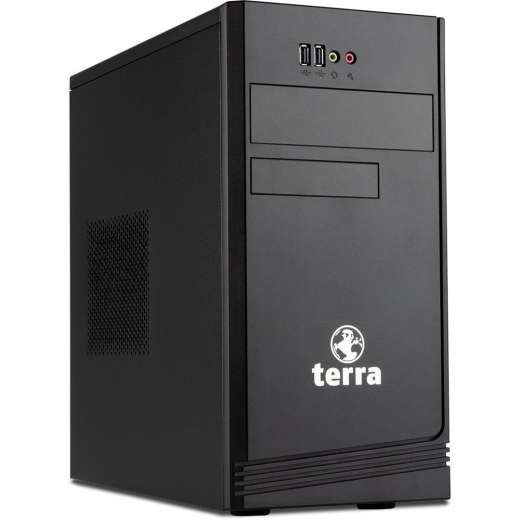

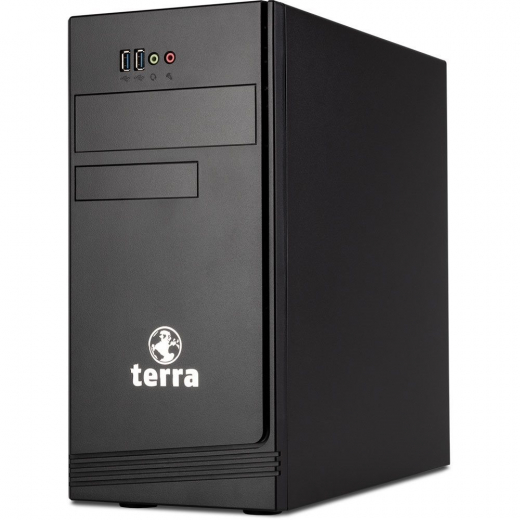

TERRA PC-BUSINESS 4000 SILENT (1000155)
Product no.: 1000155
| General | |
| Processor model | Intel Core i3 (12. Gen.) 12100 / 12 MB Intel Smart Cache, max. Turbo-Frequency 4.3 GHz) |
| Operating system | Windows 11 Pro |
| Software | |
| Pre-installed software | 1 month trial version for new Microsoft® 365 user |
| Processor | |
| Processor family | Core i3 |
| Processor cores | Quad-Core |
| Processor socket | FCLGA1700 Socket |
| Number of processors | 1 |
| Memory | |
| Internal memory | 8 GB |
| Memory layout (slots x size) | 1 x 8 GB |
| Maximum internal memory | 64 GB |
| Memory clock speed | 3200 MHz |
| Internal memory type | DDR4 SDRAM |
| Memory slots | 2 pc(s) |
| Memory form factor | DIMM, 288-PIN |
| Storage | |
| Total storage capacity | 500 GB |
| HDD interface | 4x SATA 6Gb/s 2x M.2 (2280/2260/2242) PCIe 3.0 x4 mode |
| RAID levels | No Raid support |
| SSD interface | PCIe (NVMe) |
| SSD capacity | 500 GB |
| HDD capacity | 1 x 500 GB - SSD |
| Number of storage drives supported | 6x SATA-3 (6 Gb/s) |
| Storage media | SSD - M.2 |
| Performance | |
| Noise level | 22,7 dB (Idle-Mode) |
| Audio output channels | 7.1 Channel Surround |
| Motherboard chipset | Intel H610 |
| Audio system | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Design | |
| Chassis type | Mini tower |
| Certification | Assemblierung nach ISO9001 in Deutschland Kompatibilität: SMBios (DMI), EnergyStar (Valid only for U.S.), EN62368-1, EN55032, EN55035, EN61000-3-2/3, EN62623, 89/336/ECC Produkt entspricht den Kriterien des RAL UZ 78 (Blauer Engel) |
| Keyboard | |
| Connectivity technology | Wired |
| Device interface | USB PS/2 |
| Technical details | |
| Localization | German |
| Packaging content | |
| Included Accessories | Quick Install Guide, Multi-country AC adapter (IEC plug types A, C, G & I), VESA mounting Kit |
| Expansion slots | |
| Expansion slots | 1x PCIe 4.0 x16 Slot, 1x PCIe 3.0 x1 Slot |
| Weight & dimensions | |
| Height | 37.5 cm |
| Width | 18 cm |
| Depth | 38.4 cm |
| Weight | 7 kg |
| Other features | |
| Number of drive bays | 1 front - 13.3 cm ( 5.25" ) 1 front - 8.9 cm ( 3.5" ) 1 internal - 8.9 cm ( 3.5"/ 2.5" with adapter)* 1 internal 6.4 cm (for 2.5" SSD) *Depending on production batch, installation basket for additional drives optional |
| Interface | 4x USB 3.2 Gen 2 ports (2x Front), 4x USB 2.0 ports 1x DisplayPort, 1x D-Sub (VGA), 1x HDMI, 1x LAN RJ5, 3x Audio, 2x PS/2 Option: 1x COM |
| Compatible operating systems | Windows 10, Windows 11 |
| Motherboard manufacturer | ASUS PRIME H610M-A D4-CSM |
| Cooling type | Active |
| Compliance industry standards | This appliance is classified as a Class B information technology equipment (ITE) and is intended primarily for use in residential and office environments. The CE mark confirms conformity with the following EU directives: (1) EMC Directive 2004/108/EC Electromagnetic Compatibility (2) Low Voltage Directive 2006/95/EC Electrical equipment designed for use within certain voltage limits. |
| Special features | TPM 2.0 Secure Boot Windows Autopilot-ready 2x USB 3.2 Gen1 Typ A + Audio in Front |
| Graphics | |
| On-board graphics adapter memory | Dynamisch GB |
| On-board graphics adapter maximum resolution | HDMI max. 4096 x 2160 @ 60Hz DP max. 4096 x 2304 @60Hz VGA max. 1920x1200 |
| On-board graphics card model | Intel UHD Graphics 730 |
| Graphics adapter ports | 1x DP, 1x HDMI, 1x VGA Supports Triple-Monitoring |
| Power | |
| Power source | ATX power supply. Meets 80-plus Bronce Eligible for regular business use max. 60h/ week Energy efficiency (Workload 10 %/ 20 %/ 50 % / 100 %): 82 %/ 82 % / 85 % / 82 % |
| Power consumption (standby) | Ø 1.7 Watt (S3 Mode, Suspend to RAM, WOL activated) 0,33 Watt Soft off (S5 Mode) |
| Maximum input power | 350 Watt |
| Nominal power | Ø 24 Watt Long Idle-Mode Ø 92 kWh a year (TEC = Typical Energy Consumption) Further information regarding Energy consumption see https://www.wortmann.de/green and/ or Quicklinks for this product (if available) |
| AC adapter input voltage | AC 230V ( 50 Hz ) |
| Operational conditions | |
| Operating temperature (T-T) | 5 °C - 35 °C |
| Recommended humidity operating range | 10 - 75% (non-condensing) |
| Network | |
| Ethernet LAN | Netzwerkadapter - integriert |
| LAN controller | Intel I219V, WOL/PXE |
| Optical drive | |
| Optical drive type | w/o ODD |
| Input device | |
| Movement detection technology | Optical |
| Device interface | USB |
| Notes | |
| Additional Information | *The upgrade rollout plan is still being finalized but is scheduled to begin late in 2021 and continue into 2022. Specific timing will vary by device. |
Price:
639,00 EUR
19 % VAT incl. excl. Shipping costs
