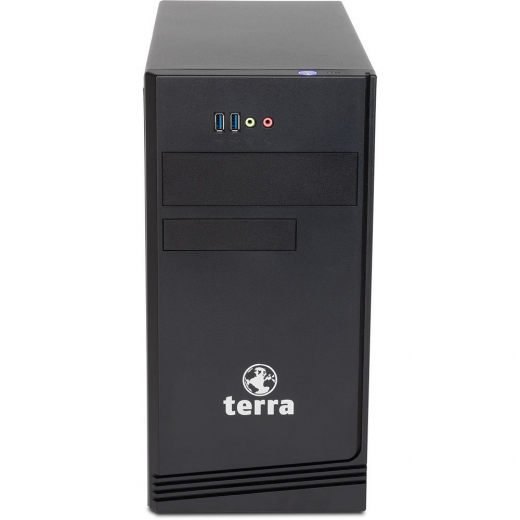

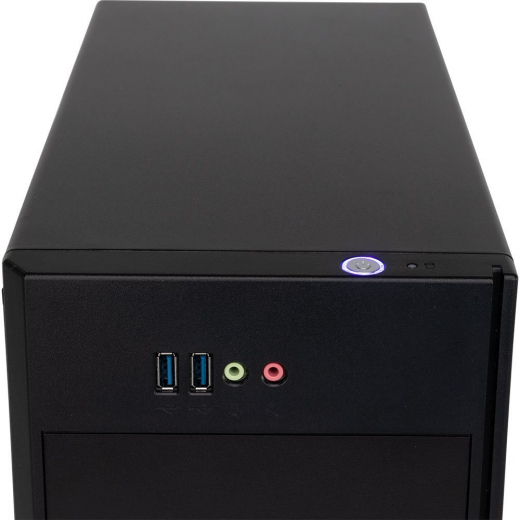

TERRA PC-BUSINESS 7000 (1000161)
Product no.: 1000161
| General | |
| Processor model | Intel Core i7 (14. Gen.) 14700 / 33 MB Intel Smart Cache, max. Turbo-Frequency 5.4 GHz) |
| Operating system | Windows 11 Pro |
| Software | |
| Pre-installed software | 1 month trial version for new Microsoft® 365 user |
| Processor | |
| Processor family | Core i7 |
| Processor cores | 20-Core |
| Processor socket | FCLGA1700 Socket |
| Number of processors | 1 |
| Memory | |
| Internal memory | 16 GB |
| Memory layout (slots x size) | 2 x 8 GB |
| Maximum internal memory | 128 GB |
| Memory clock speed | PC5600 MHz |
| Internal memory type | DDR5 SDRAM |
| Memory slots | 4 pc(s) |
| Storage | |
| Total storage capacity | 500 GB |
| HDD interface | 2x M.2 (Key M) 2280/2260/2242, PCIe 4.0 x4 mode, 4x SATA 6Gb/s ports Supports SATA Raid, no NVMe Raid |
| RAID levels | RAID 0 RAID 1 RAID 5 RAID 10 |
| SSD interface | PCIe 4.0 |
| HDD capacity | 1 x 500 GB - SSD |
| Storage media | SSD M.2 |
| Performance | |
| Series | Business |
| Nivel de ruido | 24,0 dB (Idle-Mode) |
| Audio output channels | 8-channel |
| Motherboard chipset | Intel B760 |
| Design | |
| Chassis type | Mini tower |
| Certification | ISO 9001, Assembled in Germany Compatibility: SMBios (DMI), EnergyStar (Valid only for U.S.), EN62368-1, EN55032, EN55035, EN61000-3-2/3, EN62623, 89/336/ECC |
| Keyboard form factor | TERRA Keyboard German Layout |
| Keyboard | |
| Keyboard language | German |
| Connectivity technology | Wired |
| Device interface | USB |
| Technical details | |
| Localization | German |
| Packaging content | |
| Included Accessories | Quick Start Guide, Powercord EU |
| Expansion slots | |
| Expansion slots | 1x PCIe 4.0/3.0 x16 slot 2x PCIe 3.0 x1 slots |
| Weight & dimensions | |
| Height | 37.5 cm |
| Width | 18 cm |
| Depth | 38.4 cm |
| Weight | 8 kg |
| Other features | |
| Number of drive bays | 1 front - 13.3 cm ( 5.25" ) 1 front - 8.9 cm ( 3.5" ) 1 internal - 8.9 cm ( 3.5"/ 2.5" with adapter)* 1 internal 6.4 cm (for 2.5" SSD) *Depending on production batch, installation basket for additional drives optional |
| Interface | 4x USB 3.2 Gen1 ports Type-A (2x front), 2x USB 2.0 ports 1x LAN RJ-45, 3x Audio jacks, 2x PS/2 Option: 2x COM, 1x LPT, 1x TPM module |
| Compatible operating systems | Windows 10, Windows 11 |
| Motherboard manufacturer | ASUS PRO B760M-C-CSM |
| Cooling type | TERRA Silent Heatpipe Cooler |
| Compliance industry standards | CE, ISO 9001, Assembled in Germany Compatibility: PC2001, SMBios (DMI) 2.3, PCI 2.2,WFM 2.0, EnergyStar, EN60950, EN55022,EN55024, EN61000-3-2/3, 89/336/ECC |
| Special features | 2x USB in Front TPM 2.0 Secure Boot |
| Mouse | |
| Mouse included | Terra Mouse Corded |
| Graphics | |
| On-board graphics adapter memory | Dynamisch GB |
| On-board graphics adapter maximum resolution | DisplayPort 1.2 max. 4096 x 2304@60Hz HDMI 2.1 max. 4096 x 2160@60Hz D-Sub (VGA) max. 1920 x 1200@60Hz |
| Graphics card | Intel UHD Graphics 770 |
| On-board graphics card model | Intel UHD Graphics 770 |
| Graphics adapter ports | 1x HDMI, 2x DP (Display Port), 1x VGA Supports Quad-Monitoring |
| Power | |
| Power source | ATX Netzteil 80 Plus, 24-7 eligible Energieeffizienz (Load Light 85%/ Load Typical 88%, Load Full 85%) |
| Maximum input power | 400 W |
| Nominal power | Ø 26 Watt Idle-Mode |
| AC adapter input voltage | AC 230V ( 50 Hz ) |
| Operational conditions | |
| Operating temperature (T-T) | 5 °C - 35 °C |
| Recommended humidity operating range | 10 - 75% (non-condensing) |
| Network | |
| Ethernet LAN | RJ45 |
| LAN controller | Intel I219V, WOL/PXE |
| Data link protocols | Ethernet Fast Ethernet Gigabit Ethernet 2.5 Gb Ethernet |
| Optical drive | |
| Optical drive type | None |
| Input device | |
| Movement detection technology | Optical |
| Device interface | USB Note: German Keyboard included |
| Notes | |
| Additional Information | *Upgrade timing may vary by device. Features and app availability may vary by region. |
Price:
1.199,00 EUR
19 % VAT incl. excl. Shipping costs
