Products description
| General | |
| Processor model | Intel® Core™ i5-1335U Prozessor (12 MB Intel Smart Cache, bis zu 4.60 GHz) |
| Operating system | Windows 11 Pro |
| Software | |
| Pre-installed software | 1 month trial version for new Microsoft® 365 user |
| Processor | |
| Processor family | Core i5 |
| Processor cores | Okta-Core (8-Core) |
| Processor socket | Embedded in SOC |
| Number of processors | 1 |
| Memory | |
| Internal memory | 16 GB |
| Memory layout (slots x size) | 1 x 16 GB |
| Maximum internal memory | 64 GB |
| Memory clock speed | PC5600 MHz |
| Internal memory type | DDR5 |
| Memory slots | 2 |
| Memory form factor | SO-DIMM, 262-IN |
| Storage | |
| Total storage capacity | 500 GB |
| HDD interface | 1x SATA 6Gb/?s, 1x M.2/?M-Key (PCIe 4.0 x4, 2280/?2260/?2242), 1x M.2/?M-Key (PCIe 4.0 x4/?SATA, 2280/?2260/?2242) |
| Card reader integrated | Yes |
| SSD interface | PCIe (NVMe) |
| SSD capacity | 500 GB |
| HDD capacity | 1x 500 GB NVMe SSD |
| Compatible memory cards | SD/ SDHC/ SDXC |
| Number of storage drives supported | 2 |
| Storage media | SSD M.2 |
| Performance | |
| Series | Industry Micro/ Mini Format Business |
| Audio output channels | Stereo |
| Audio system | High Definition Audio |
| Design | |
| Chassis type | Mini format |
| Keyboard form factor | Optional |
| Technical details | |
| Localization | International |
| Field of use | Digital Signage |
| Packaging content | |
| Included Accessories | Quick Install Guide, Driver CD, external psu VESA mounting kit, Pedestal for vertical use |
| Keyboard language | Optionally |
| Expansion slots | |
| Expansion slots | 1x M.2 Typ 2242/ 2260/ 2280 (PCIe/ SATA) 1x M.2-2230E Slot for WiFi/BT Modul |
| Weight & dimensions | |
| Altura | 3.95 cm |
| Ancho | 16.5 cm |
| Profundidad | 20 cm |
| Peso | 1.60 kg |
| Other features | |
| Interface | Option: COM 2-Port instead of VGA-connector |
| Compatible operating systems | Windows 10 (64-Bit) Windows 11 (64-Bit) Unsupported OS by WAG: Linux (64-Bit) |
| Cooling type | Passive - fanless |
| Compliance industry standards | CE, ISO 9001, Assembled in Germany Compatibility: PC2001, SMBios (DMI) 2.3, PCI 2.2,WFM 2.0, EnergyStar, EN60950, EN55022,EN55024, EN61000-3-2/3, 89/336/ECC 24-7 ready (temporary fan-maintance required) |
| Special features | Fanless Heatpipe Kensington Lock (side) TPM 2.0 Option: 19" mounting Option: WiFi/ Bluetooth |
| Mouse | |
| Mouse included | Optional |
| Graphics | |
| On-board graphics adapter memory | Dynamisch GB |
| On-board graphics adapter maximum resolution | HDMI 4K @60Hz DP 4K @60Hz VGA 1920x1200 |
| Graphics card | Intel Iris Xe Graphics |

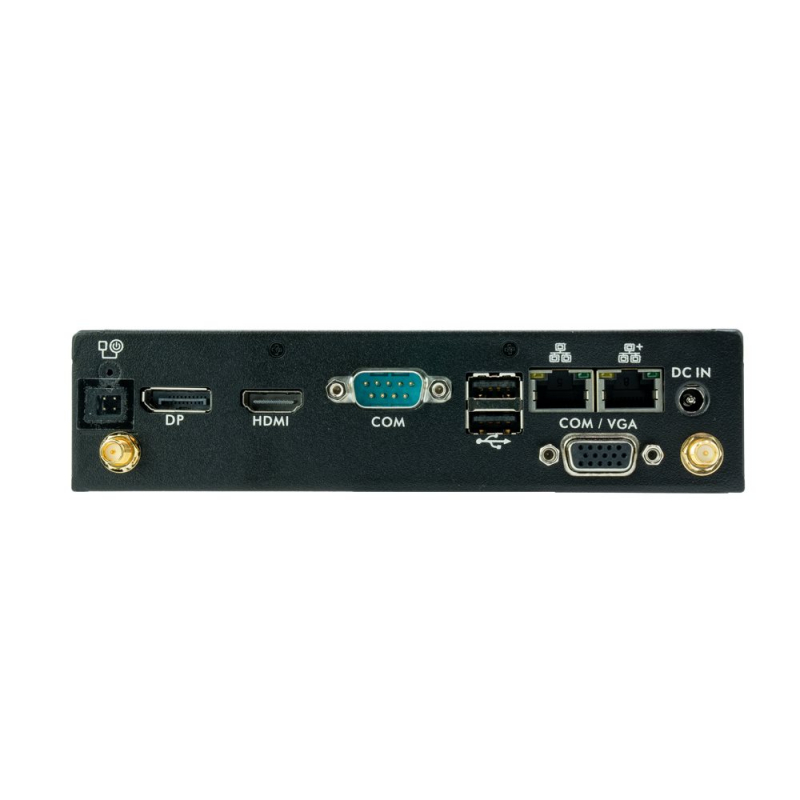

| Graphics adapter ports | 1x HDMI, 1x DP (Display Port), 1x VGA Supports Triple-Monitoring |
| Power | |
| Power source | External fanless power supply |
| Maximum input power | 90 W |
| Nominal power | Ø 8 Watt Long Idle-Mode Ø 38 kWh a year (TEC = Typical Energy Consumption) Further information regarding Energy consumption see https://www.wortmann.de/green and/ or Quicklinks for this product (if available) |
| AC adapter input voltage | AC 100/240 V ( 50/60 Hz ) |
| Operational conditions | |
| Intervalo de temperatura operativa | 0 °C - 40 °C |
| Recommended humidity operating range | 10 - 80% (non-condensing) |
| Network | |
| Ethernet LAN | Netzwerkadapter - integriert |
| LAN controller | 1x Intel i219LM + 1x Intel i211 Unterstützt WOL, PXE Supports Teaming |
| Data link protocols | Ethernet Fast Ethernet Gigabit Ethernet |
| Optical drive | |
| Optical drive type | Ohne optisches Laufwerk |
This Product was added to our catalogue on 10/02/2026.
